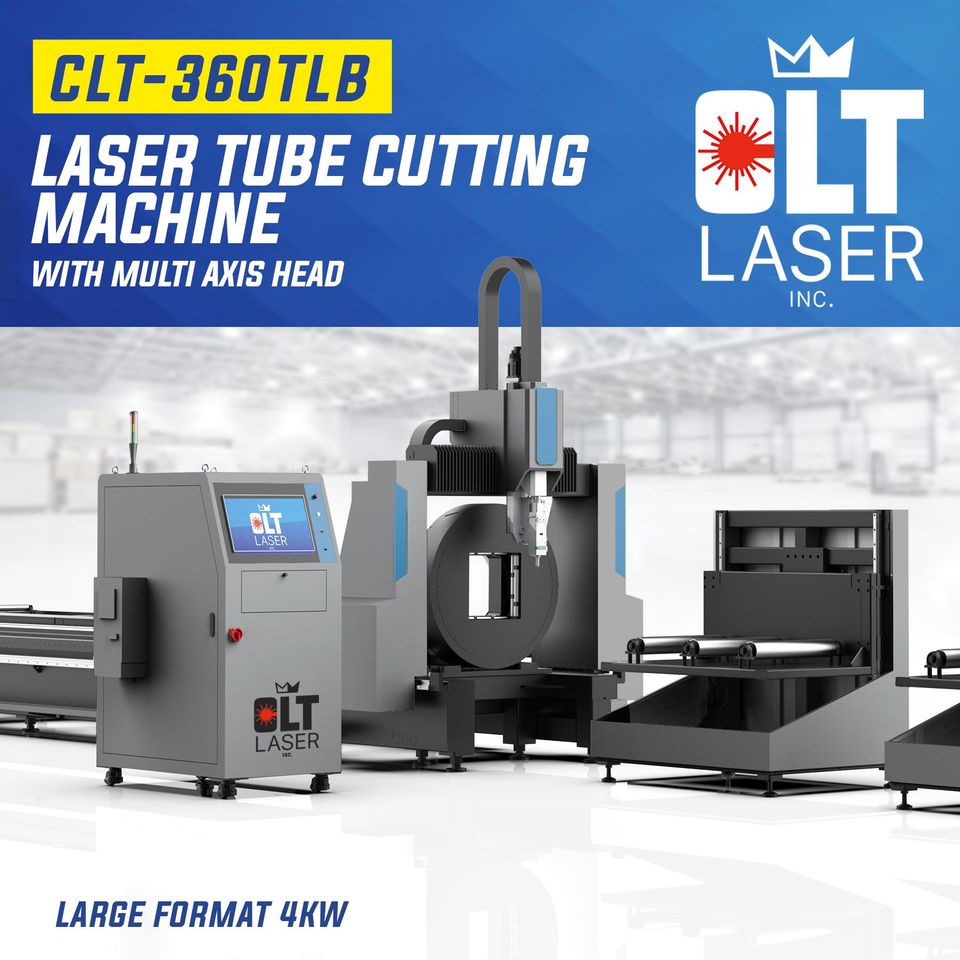

Large Format 4kw Tube Laser

High quality construction & design

Horizontal bed layout, two-chuck design, low center of gravity, stable and solid. designed with a Movable gantry structure to meet the cutting needs of long workpieces and short tails

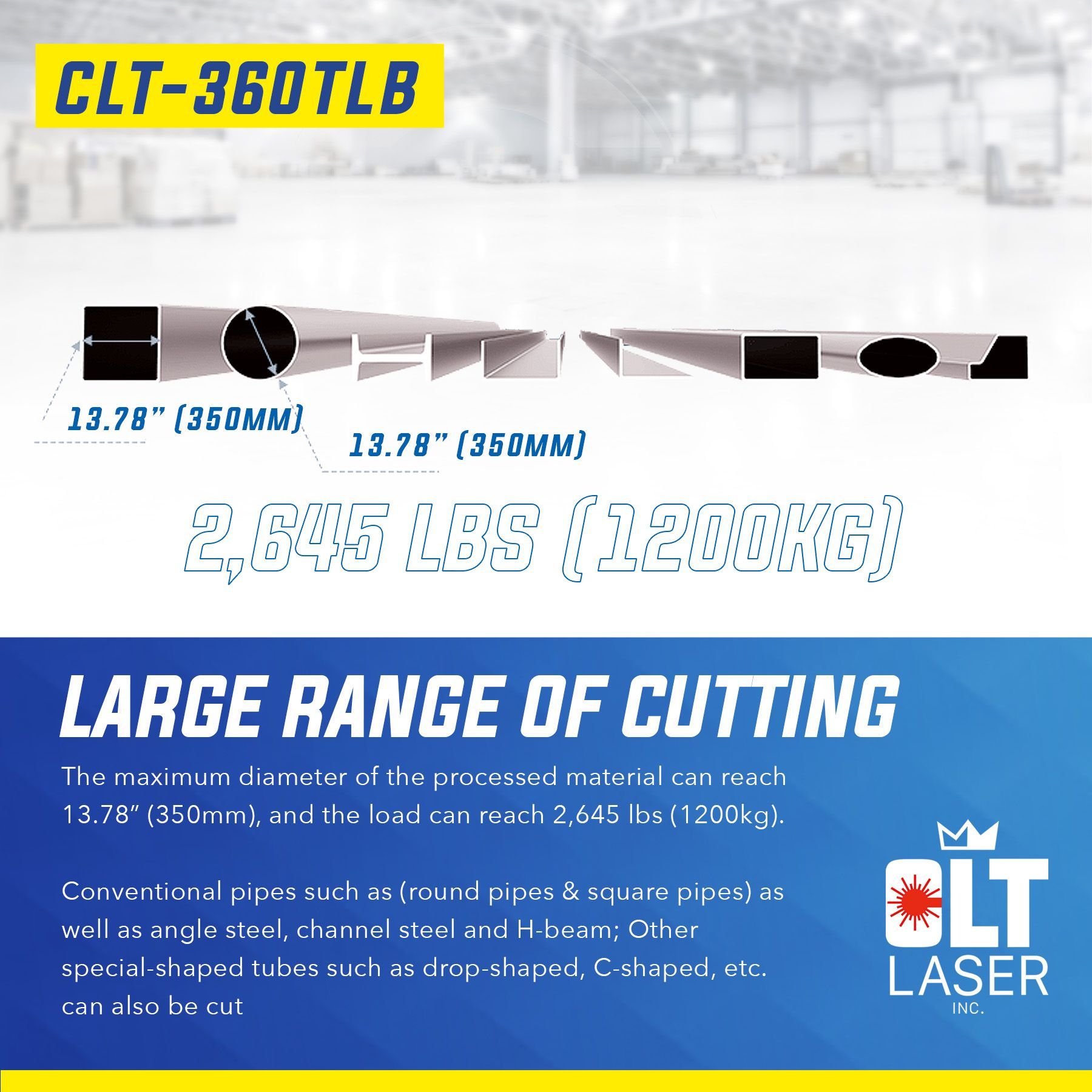

Large range of cutting

The maximum diameter of the processed material can reach 13.78” (350mm), and the load can reach 2,645 lbs (1200kg).


Conventional pipes such as (round pipes & square pipes) as well as angle steel, channel steel and H-beam; Other special-shaped tubes such as drop-shaped, C-shaped, etc. can also be cut

Affordable production

Our efficient two-chuck design means less cutting for a lower cost of operation. Easy to operate, With a large adjustable feeding supports. Follow-up blanking support, auxiliary blanking lifting table, improve cutting accuracy to facilitate efficient blanking.

Compact footprint

Small footprint, compared to three-chuck and four-chuck pipe cutting machines. Efficient design means floor space is reduced by up to 30%. Simple assembly and installation helps prevent production delays.

Equipped with a bus system to
achieve high-precision and high-quality processing

1. Professional 3D nesting software


2. Rich database of pipe cutting process history


3. Automatically generate reports and processing records


4. The interface is easy to learn and understand

CLT-360tlb Specs:

length: 570“ (14500 MM)

width: 91” (2320 MM)

height: 81” (2050 MM)

weight: 11,900 lbs

Y-axis max acceleration: 0.5G

Max chuck speed: 80r/min

Max RUN speed: 80M/min
